Description

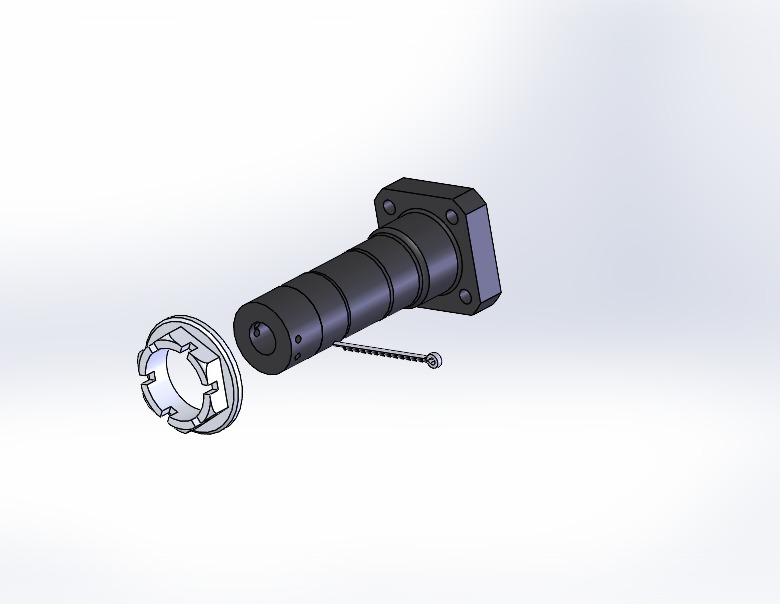

The WHLAXLE3AF axle is a FLANGE style axle made of 6061-T6 AL alloy. This axle has a 1.25 inch diameter bearing surface. The axle has 1.37 inch spacing between the 0.257 inch bolt holes on a 1.937 reference circle.  Axle is center drilled for the wheel pant support rod WHLA3AFROD.  This axle assembly comes with the AN1H axle nut.

Matco Aircraft Landing Systems axles that are aluminum are black anodized and steel axles are yellow zinc.
